ZTE MC888 Ultra 5G Router & Modification Services
ZTE MC888 Ultra 5G Router & Modification Services
£64.99 – £513.99
16 in stock (can be backordered)
- Description
- Additional information
- Router Features
- Router Specifications
- Modification Video
- Downloads
- Discussion (0)
Description
ZTE MC888 Ultra 5G Router & Modification Services
Purchasing options:
WIFI Modification – Converts the internal WIFI antennas for external antenna use providing you with 4x SMA WIFI antenna ports.
- Router Options:
- Without Modifications selected – Includes a new, unused unlocked router that will be unmodified.
- With Modifications selected – Includes a new, unused unlocked router that will be modified to your selected modifications.
- Send your router – Requires you to send us your router for modification.
Full Mod – Provides 4x 4G SMA ports and 4x 5G N77/N78/N79 SMA Ports.
Part Mod – Part Modification – provides 2x 5G N77/N78/N79 SMA Ports.
NOTE: Only purchase the Part Mod service if you have either:
- (5G Router only) Damaged the factory external antenna ports while previously receiving 5G signal with an external antenna attached prior to damaging the ports.
- (5G Router only) Does not have factory external antenna ports but are receiving 5G signal via internal antennas and wish to improve the 5G signal.
If either of the above, do not apply to you then please purchase the full modification.
Please Note – All modifications (4G/5G & WIFI) removes and replaces all internal antennas for SMA external antenna ports. The internal antennas will no longer function. The router will be reliant on the new SMA ports for connectivity.
Router Modification Service
This Purchasing option is used to purchase our fantastic, well known and loved router antenna modification service.
This requires you to send your router to use for modification.
Modification Service Process:
Once you have completed the checkout process, please dispatch your router to the address within you purchase receipt (received via email) and provide us with the tracking information via email.
More details about the modification:
- Please look in our “FAQ” section for our more frequently asked questions.
- For more information and what this modification can, do take a look at our “Modification Info” page.
- Download and read our “Modification User Manual” in the download tab below
More Tools & Information:
Need help getting up an running?. Don’t forget Router-Mods offer an onsite installation service. Click here for more information.
Download our advance guides for more in-dept details for everything you need to know for the perfect installation.
Don’t forget to take a look at our “installation prep” free guide.
If you have any further questions, please contact us.
Additional information
| Weight | 1.99 kg |
|---|---|
| Dimensions | 10 × 10 × 20.5 cm |
| 4G/5G Mod Type | Full Mod, Part Mod, No Mod |
| WI-FI Mod | Yes, No |
| Router | Send Us Your Router, Buy Router From Us |
Router Features
|
|
|
|
|---|---|---|

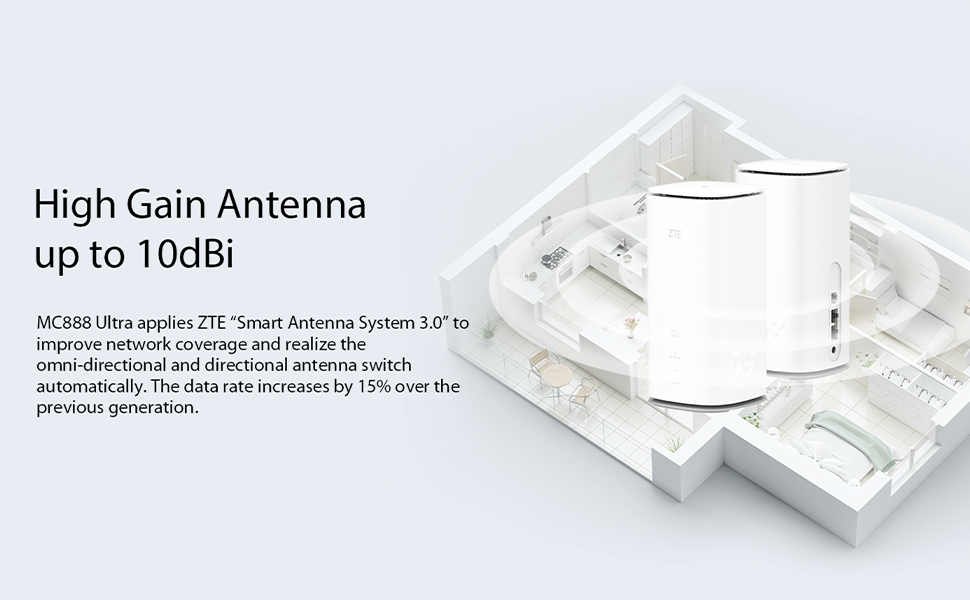

Strong antenna gainBy a unique antenna design, the antenna gain is up to 10dBi, which enhances the ability to penetrate walls and windows yielding stronger signal and wider coverage. Compared with ordinary products, the speed is increased by 15%, and 5G signals can be well received when placed at anywhere. |

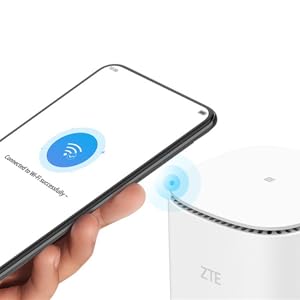

One touch networkingThe device supports the NFC one-touch networking function. Turn on the NFC function of the phone, and tap the router to access the Wi-Fi network without password, which is easy and convenient. |

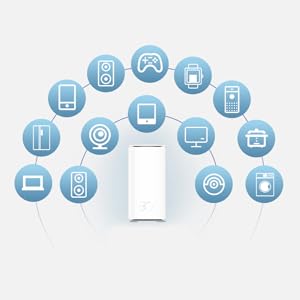

Connect 256 UsersWith one ZTE MC888 Ultra, more than the whole family can enjoy 5G network as it supports up to 256 Wi-Fi users access simultaneously. And also the needs of enterprises are met by this feature. |
Router Specifications
| Feature | Description | Support | Remarks | |||||
| Artwork | Dimensions | 205*100*100mm | ||||||
| Weight | about 760g | |||||||
| Picture |
|
|||||||
| Form factor | 5G CPE (SA & NSA) | 5G NR 5G NR + LTE EN-DC |
||||||
| User manual | No | Can be customized | ||||||
| Quick guide | Yes | |||||||
| Warranty cards | Optional | Can be customized | ||||||
| Battery | No | |||||||
| AC adapter | 12V/2A | Yes | ||||||
| Network cable | 1 cable is included in the package | Yes | ||||||
| EAN | Yes | |||||||
| TAC | Yes | |||||||
| Solution | Wireless chipset supplier | Qualcomm | ||||||
| Routing and WiFi chipset supplier | Qualcomm | |||||||
| Wireless chipset model | SDX62 | Power Management: PMX62+PMK62 |
||||||
| Wireless processor info | SDX62 Arm Cortex-A7 up to 1.8GHz | |||||||
| Routing and WiFi chipset model | QFW6114+QFW6114 | |||||||
| SLIC | SI32176 | |||||||
| USIM/SIM slot | Standard 6PIN SIM card interface 3V SIM card and 1.8V SIM card |
4FF physical SIM by default. eSIM is compliable, but default is SIM slot |
||||||
| Memory(SDRAM/NAND) | 8Gbits Nand + 8Gbits LPDDR4 | |||||||
| MICRO SD slot | No | |||||||
| USB interface | 1 | Yes | TypeC For speed test and debug |
|||||
| RJ45 interface | 2 | Yes | One 1GE: 10Base-T /100Base-T /1000Base-T One 2.5GE:10Base-T /100Base-T /1000Base-T/2500Base-T |
|||||
| RJ11 interface | 1 | Yes | Default: VoLTE&CSFB | |||||
| WiFi users access | 128 | 2.4GHz: 64 users 5GHz: 64 users |
||||||
| Maximum power consumption | < 24W | |||||||
| Power indication LED | Single color (White) Always on(White)—-power on Off—-powered off |
|||||||
| WIFI indication LED | Single color (White) Always on—-WLAN working normally Blinkling—-WPS is activing |
|||||||
| Network mode indication LED | Red—-Turn on but not register White Solid—-Connect or Register to NSA or SA network Blue Solid—-Connect or Register to 3G or LTE only |
|||||||
| LAN port LED | Single color (Green&Orange) Green Solid—-The LAN port is connected Orange blink—-The LAN port is connected with data transmission Off—-No network cable connected |
It’s standand RJ45 LED status | ||||||
| RF | Chipset | SDX62 | ||||||
| SRS | Yes | N78 | ||||||
| Waveform | CP-OFDM for UL&DL DFT-s-OFDM for UL |
Yes | ||||||
| Sub Carrier | 30KHz, 15KHz | |||||||
| Main antenna | Internal antenna | |||||||
| Antenna Gain | 700~960MHz: 1~1.5dBi 1450~2700MHz: 1.5~2.5dBi 3300~4200MHz: 4dBi , 10dBi for only Rx |
|||||||
| GSM band | No | Doesn’t support 2G | ||||||
| UMTS band | B1/8 | Yes | ||||||
| LTE band | B1/3/7/8/20/28/32/38/40/42/43 | CA: Support 2CA, 3CA, 4CA, 5CA on DL Support 2CA on UL if you want to know more CA abilty of this device to match your network, please provide your requirement and make further evaluation. |
||||||
| 5G Sub6 Band | N1/3/7/8/20/28/38/40/75/77/78 | |||||||
| 5G mmWave Band | No | Doesn’t support mmWave | ||||||
| NSA 5G + LTE Band | Yes | There are so many EN-DC ability on this device, if you want to know more abilty of this device to match your network, please provide your requirement and make further evaluation. | ||||||
| MIMO for wireless | 5G Sub6:n1,n3,n7,n78 supports 4*4MIMO； LTE: B1,B3,B7,B32,B38,B41 supports 4MIMO |
|||||||
| transmitter power for wireless | 26dBm for B41,N78 SA 23dBm for other bands |
|||||||
| WiFi band | 2.4GHz & 5GHz | |||||||
| MIMO for WiFi | 2.4GHz: 4*4 MIMO 5GHz: 4*4 MIMO |
|||||||
| MU-MIMO | Yes | |||||||
| Max. transmitter power for WiFi | 16dBm(Max) in 11a mode 17dBm(Max) in 11b mode 16dBm(Max) in 11g mode 16dBm(Max) in 11n mode 16dBm(Max) in 11ac mode 16dBm(Max) in 11ax mode |
This is max WiFi transmitter power on this device. These values will be adjusted by country code base on the local law. | ||||||
| Technical standard | WCDMA | WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbpsHSDPA: DL 14.4Mb/s(Category 10) DL 21Mb/s(Category 14) DL 42Mb/s(Category 24) HSUPA: UL 5.76Mb/s(Category 6) |
||||||
| LTE | LTE FDD(DL Category19, UL Category18): DL 1.6Gb/s UL 200MbpsLTE TDD DL 1.12Gb/s UL 40Mb/s |
FDD peak rates require DL: 256QAM + 5CA + 4MIMO; UL: 64QAM + 2CA intra-bandsand interband TDD peak rates require DL: 256QAM + 5CA + 4MIMO; UL: 64QAM + 2CA intra-bandsand interband. And TDD frame config 2 (DL/UL ratio 7:2) |
||||||
| NSA 5G Sub + LTE Band | LTE FDD + Sub6G DL 3.03 Gb/s UL 180Mb/s |
LTE FDD + Sub6G DL: LTE 16layer/256QAM + NR 100M /256QAM +75% DL duty cycle; UL: LTE 20M 256QAM + 100M NR 256QAM 25% UL This is theoretical Max Rate on this device platform. The different CA requirement will result different rate |
||||||
| SA 5G Sub6 | 5G Sub6G -TDD DL 1.716 Gb/s UL 160Mb/s |
DL peak rates requires: 100MHz + 256QAM + 4MIMO 75% DL duty cycle; UL peak rates requires: 100MHz + 256QAM + 2MIMO 92.5% duty cycle. This is UL highest speed. Not happen with DL speed listh here |
||||||
| Bandwidth of Sub6G | 40MHz, 50MHz, 60MHz, 80MHz, 90MHz, 100MHz | |||||||
| Modulation | Sub6G DL: 256QAM UL: 256QAM LTE DL:256QAM UL: 64QAM |
|||||||
| BWP | Yes | There is four bandwidth parts (BWPs) at most for receptions in a downlink bandwidth, but just one is active. | ||||||
| Network Slicling | No | |||||||
| 3GPP release | Release 16 | |||||||
| WiFi standard | 802.11 b/g/n/a/ac/ax | |||||||
| WiFi Band | 2.4G: 20M/40M 5G: 20M/40M/80M/160M |
|||||||
| WiFi Speed | 2.4G 4*4 MIMO: 1.2Gbps 5G 4*4 MIMO: 4.8Gbps The totoal spped can up to 6Gbps. |
This is theoretical speed. | ||||||
| WiFi security | Open WPA2(AES)-PSK WPA-PSK/WPA2-PSK WPA3-PSK WPA2-PSK/WPA3-PSK |
Yes | WPA2(AES)-PSK by default –Authentication: Pre-Shared Key (PSK) –Encryption: Auto |
|||||
| WPS | PBC(Push Button Config) & station PIN | Yes | ||||||
| IP protocols | RFC 791 (IP) | Yes | ||||||
| RFC 793 (TCP) | Yes | |||||||
| RFC 768 (UDP) | Yes | |||||||
| RFC 792 (ICMP) | Yes | |||||||
| RFC 826 (ARP) | Yes | |||||||
| RFC 1661 (PPP) | Yes | |||||||
| RFC 1332 (IPCP) | Yes | |||||||
| RFC 1334 (PAP) | Yes | |||||||
| RFC 1994 (CHAP) | Yes | |||||||
| NAT/NAPT | RFC 3022 | Yes | ||||||
| Browser | IE | Yes | ||||||
| Firefox | Yes | |||||||
| Safari | Yes | |||||||
| Opera | Yes | |||||||
| Chrome | Yes | |||||||
| ZTE Link | Android and iOS APP to management the CPE | Yes | ||||||
| Router | Port forwarding | Yes | ||||||
| IP filter | Yes | IP/MAC/Port/URL filter | ||||||
| DMZ | Yes | |||||||
| UPnP | Yes | |||||||
| VPN passthrough | PP2P/L2TP/IPSec | Yes | ||||||
| VPN Client | PP2P/L2TP | No | Can be customized | |||||
| Add. Features | Voice | Yes | VoLTE/CSFB | |||||
| Fax | No | |||||||
| SMS | Yes | SMS over CS, SMS over SGs, SMS over IMS and SMS over NAS | ||||||
| MMS | No | |||||||
| Phonebook | No | |||||||
| Network lock | No | Can be customized | ||||||
| IPV4/IPV6 | Yes | |||||||
| Language | English | Yes | ||||||
| Firewall switch | Enable/Disable IP/MAC/Port/URL filter | Yes | ||||||
| TR069 | Yes | |||||||
| Online update | FOTA | Yes | ||||||
| HW buttons & Switches | Power button | No | ||||||
| Reset button | To restore factory default configurations after pressing for 3 seconds | Yes | Reset button locates on the bottom of the device. | |||||
| WPS button | To activate the PBC(Push Button Config) function | Yes | WPS button locates on the back of the device. | |||||
| Approvals & Certification | CE | Yes | ||||||
| ROHS | Yes | |||||||
| WEEE | Yes | |||||||
| GCF | Yes | |||||||
| FCC | No | |||||||
| WiFi certification | Yes | |||||||
| PTCRB | No | |||||||
| REACH | Yes | |||||||
| Env. | Operating temperature | -20 to 55° C | ||||||
| Storage temperature | -40 to 70° C | |||||||
| Humidity | 5% to 95% | |||||||
| Market launch details | Engineering samples (yyyy/mm/dd) |
|||||||
| Final samples (yyyy/mm/dd) |
||||||||
| Product market launch date (planned) (yyyy/mm/dd) |
